Standard Wood Grain Steel Coil
Standard Wood Grain Steel Coil
Printed Wood Pattern PPGI / PPGL Steel Coil
| Substrate | PPGI / PPGL Steel Coil |
| Pattern Type | Standard Wood Grain (Oak, Walnut, Teak, Pine, etc.) |
| Paint System | PE / HDP Coating with Clear Topcoat |
| Thickness | 0.12 – 1.2 mm |
| Surface Finish | Smooth / Textured Wood Finish (With Protective Film) |
Protective Clear Topcoat
A transparent protective coating can help reduce surface scratching during handling and profiling; results depend on the coating, tooling, and processing conditions.

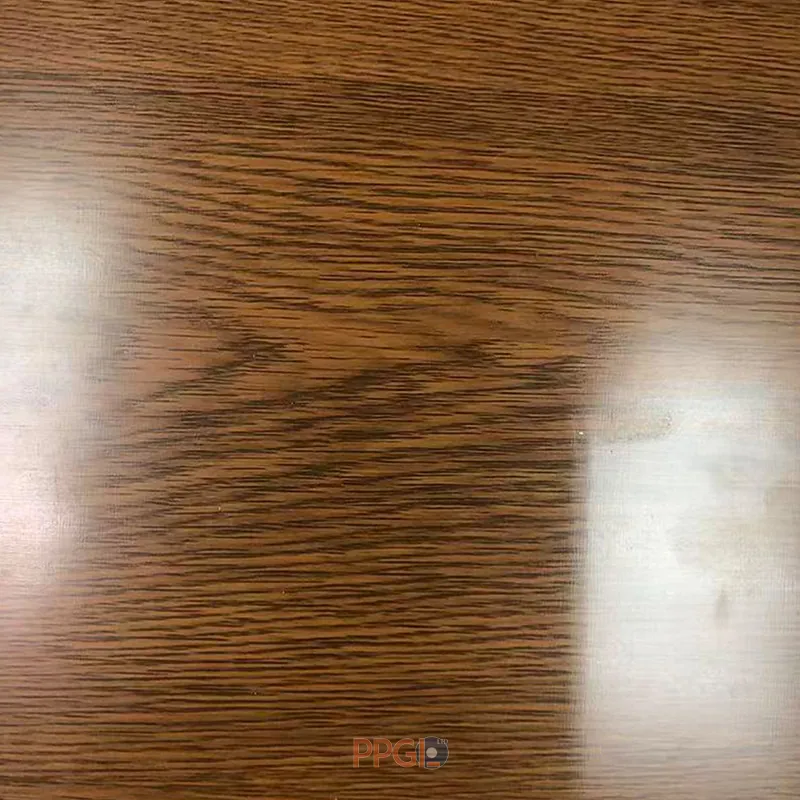

Realistic Wood Aesthetics
Authentic wood texture gives your products a premium look at a fraction of natural wood cost.
High Pattern Consistency

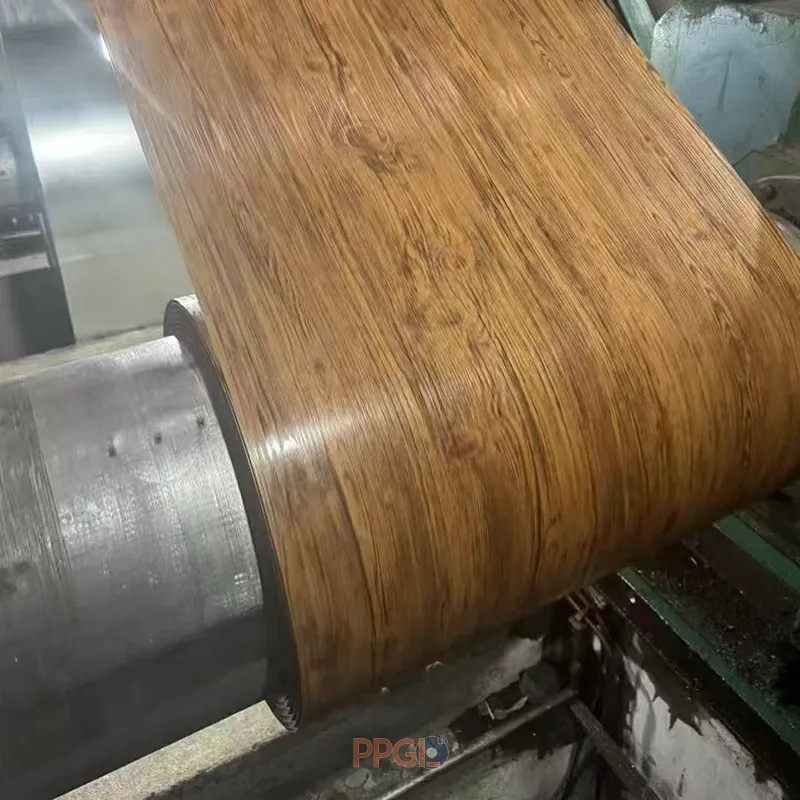

Roller printing is checked against the approved sample and agreed color and pattern tolerances.

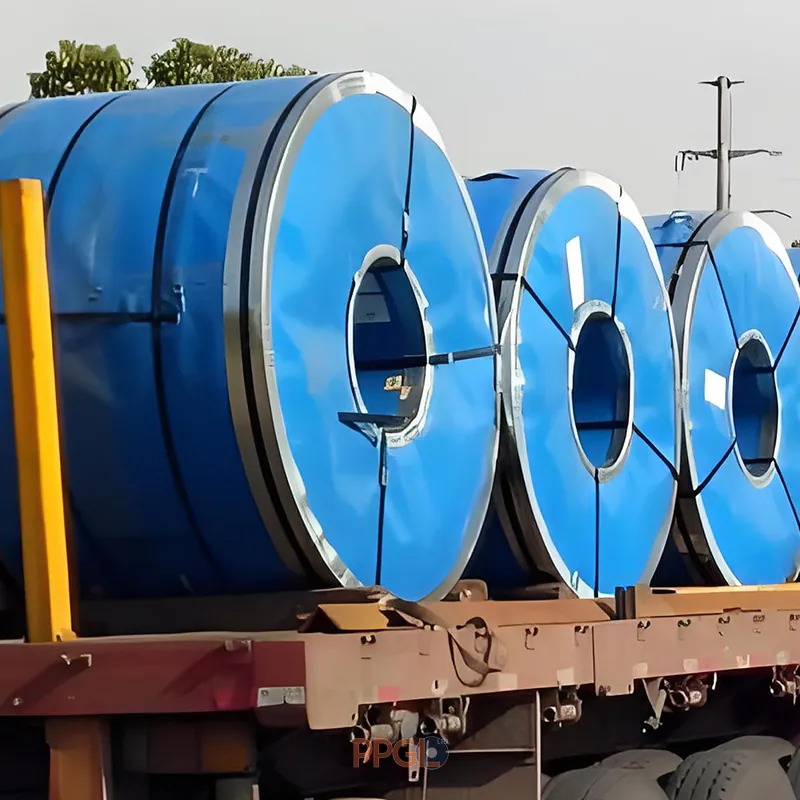

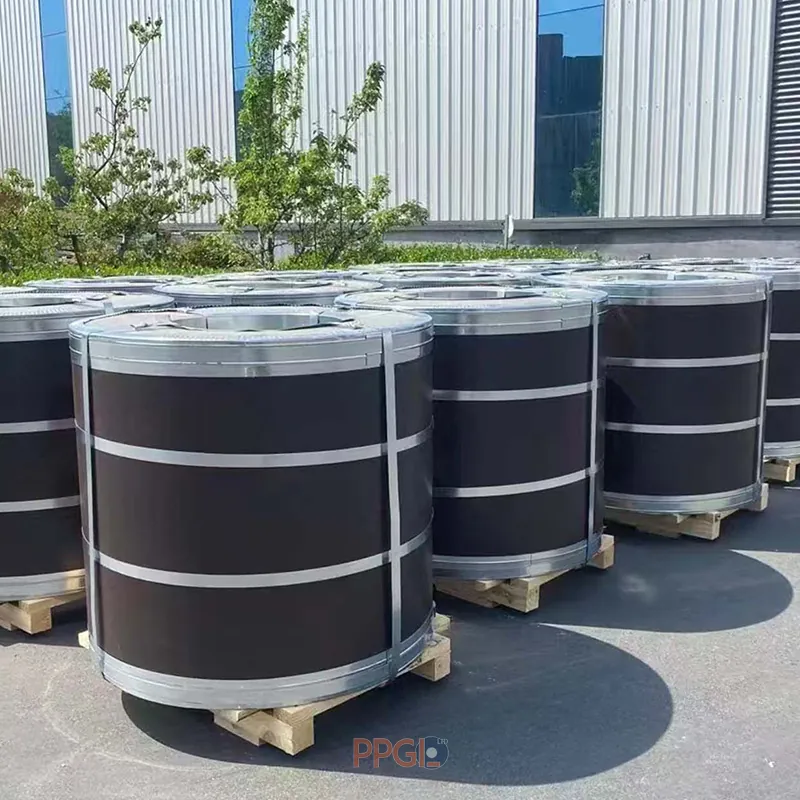

Robust Seaworthy Packaging
Heavy-duty wrapping and edge guards protect delicate printed surfaces from transport damage.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Standard Wood Grain Steel Coil / Printed Pattern PPGI PPGL Coil |
| Substrate Type | Hot-Dipped Galvanized Steel (GI) / Galvalume Steel (GL) |
| Standard Compliance | ASTM A653, ASTM A792, JIS G3312, EN 10169 |

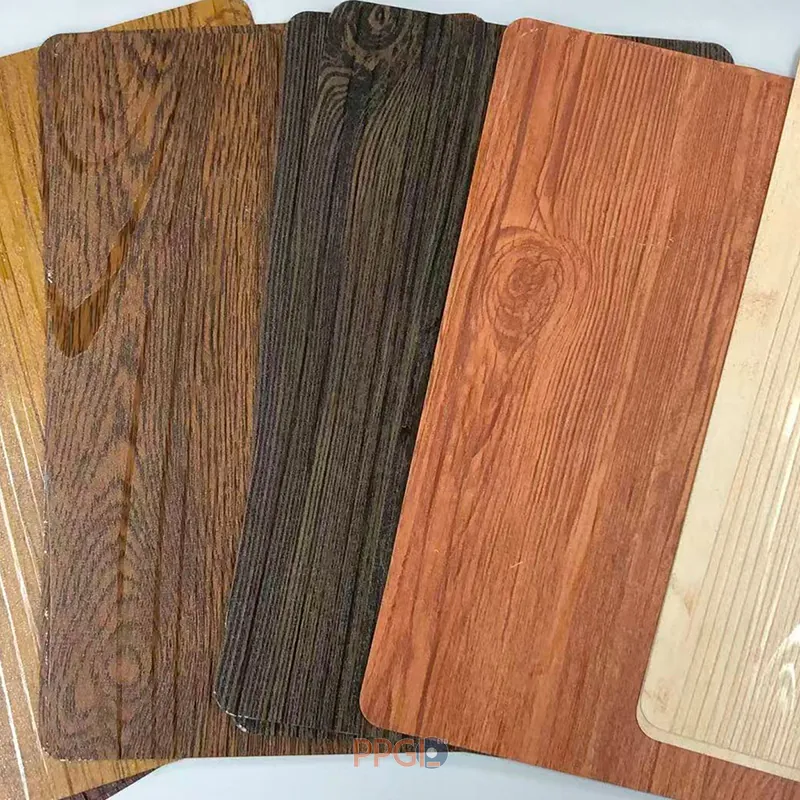

| Wood Patterns | Oak, Walnut, Teak, Pine, Cedar, Rosewood, and Custom Wood Designs |
| Paint Coating System | Base Coat + Wood Pattern Print Layer + Clear Protective Topcoat (PE / HDP) |
| Thickness Range | 0.115 – 1.2 mm |
| Width Range | 600 – 1250 mm |
| Zinc/AZ Coating | Z30 – Z180 / AZ30 – AZ150 g/m² |
| Coil Weight & ID | 3 – 6 Metric Tons per coil; ID: 508 / 610 mm |
| Primary Applications | Interior/exterior wall cladding, steel security doors, garage doors, ceiling tiles, roofing sheets |
Quality Control & Shipping Case
Pattern clarity, color alignment, and gloss are checked against the approved sample and confirmed order specification.
Wood-grain pattern and color are checked against the approved sample and agreed production tolerances.
Protective paper, film, and steel strapping are selected according to the finish and shipment requirements to help limit transit damage.
Buyer Concern & FAQ
What specifications are available for wood-grain steel coil?
Common supply options include thicknesses from 0.12 to 1.20 mm and widths from 600 to 1250 mm. Final substrate, coating, finish, dimensions, and tolerances are confirmed for each order.
Can a custom wood pattern be developed?
Custom development may be available from an approved reference or sample, subject to technical review, quantity, and agreed pattern and color tolerances.
Can wood-grain steel be formed?
Formability depends on the substrate, coating structure, thickness, tooling, bend radius, and processing conditions. The intended forming method should be confirmed before production.
Is protective film available?
Protective film can be supplied for selected finishes to help reduce scratches and contamination during handling and processing.
Which standards can apply?
The substrate and coated product can be supplied to applicable ASTM, EN, or JIS requirements when the relevant standard, grade, and test method are confirmed in the order.
