Home Appliance Steel Sheets & Coils
Home Appliance Steel Sheets & Coils
High-Precision PCM & VCM Steel Coils for Premium Refrigerator Panels, Washing Machines & Appliance Enclosures
| Product Types | PCM (Prepainted Metal) / VCM (Vinyl Coated Metal) |
| Substrates | Cold Rolled (CR) / EG / GI / GL (EDDQ / IF Steel Available) |
| Thickness Range | 0.30 – 0.80 mm (High Precision Tolerance) |
| Width Range | 600 – 1380 mm |
| Surface Finish | High Gloss, Matte, Metallic, 3D Textured Film, Anti-Fingerprint (AF) |
Stable Surface Flatness
Consistent flatness and surface quality for appliance panel processing.
Scratch-Resistant Surface
Surface coating options designed to improve scratch resistance during processing and daily use.
Good Formability
Substrate and coating options available for bending, forming, and deep-drawing applications.
Flexible Specifications
Multiple substrate, paint system, color, thickness, and surface finish options available.
PCM vs VCM: Selecting the Right Home Appliance Steel
Compare pre-coated and vinyl-laminated steel technologies to match your technical requirements, budget, and aesthetic targets.
PCM Steel Sheets

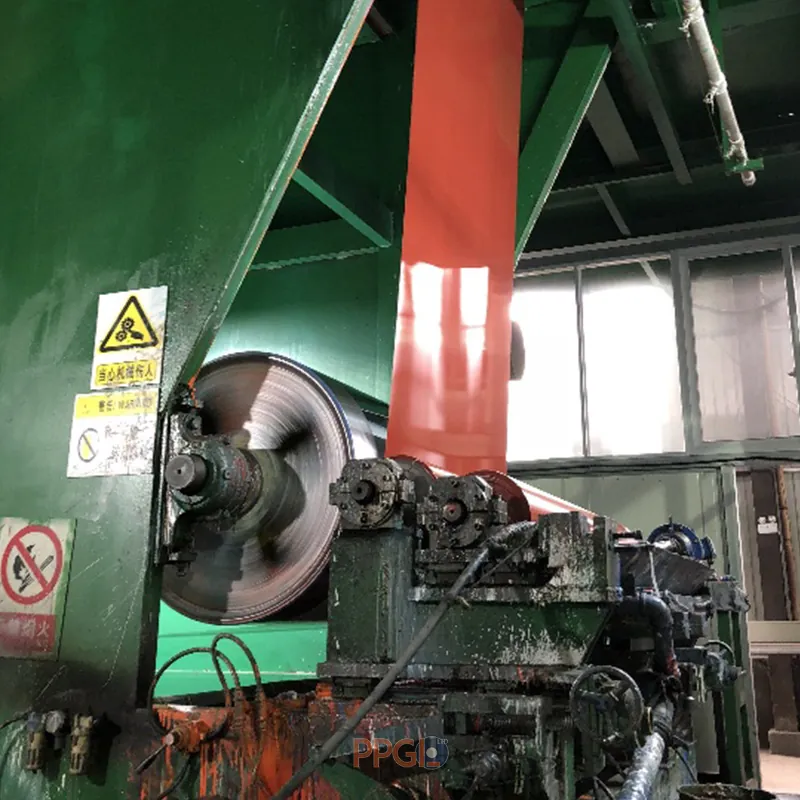

Pre-Coated MetalRoller-coated with premium appliance-grade paints (High-gloss PE, Matt, PVDF, or anti-fingerprint coatings).
Ultra-flat surface, excellent cost-efficiency, high stampability & deep-drawing capacity, consistent color uniformity.

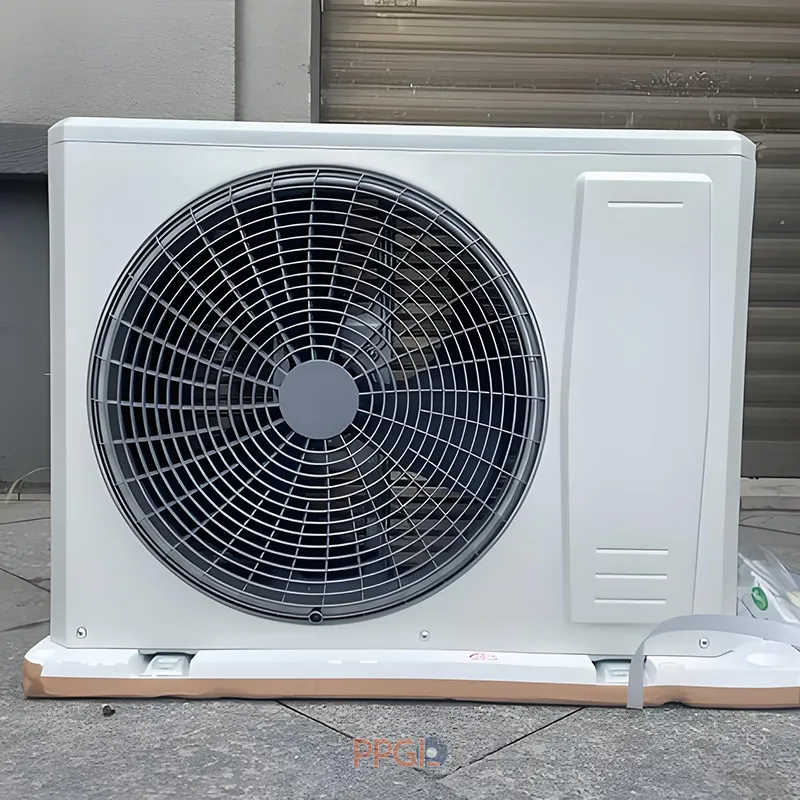

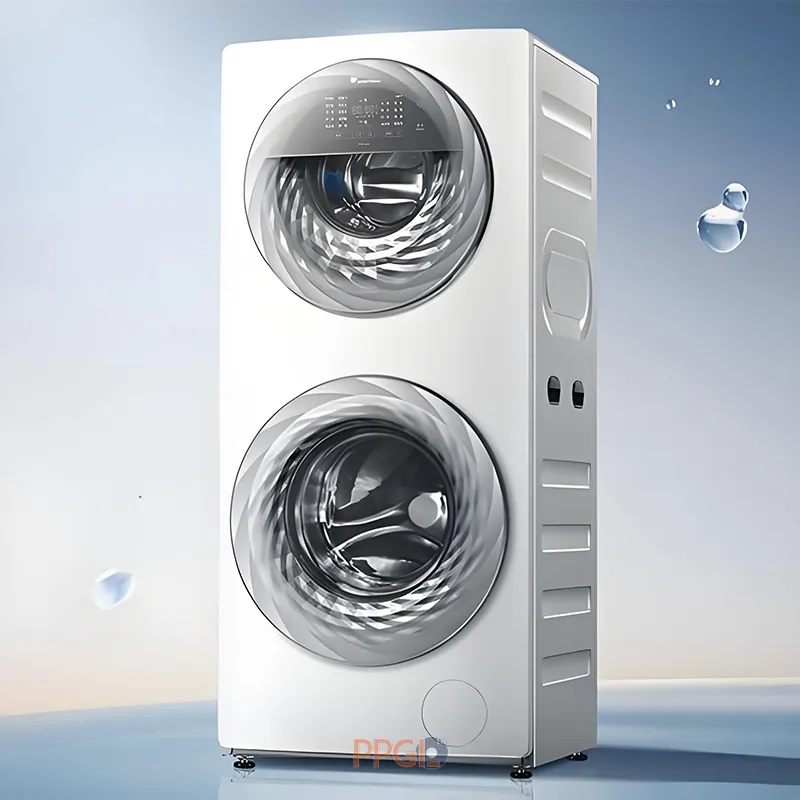

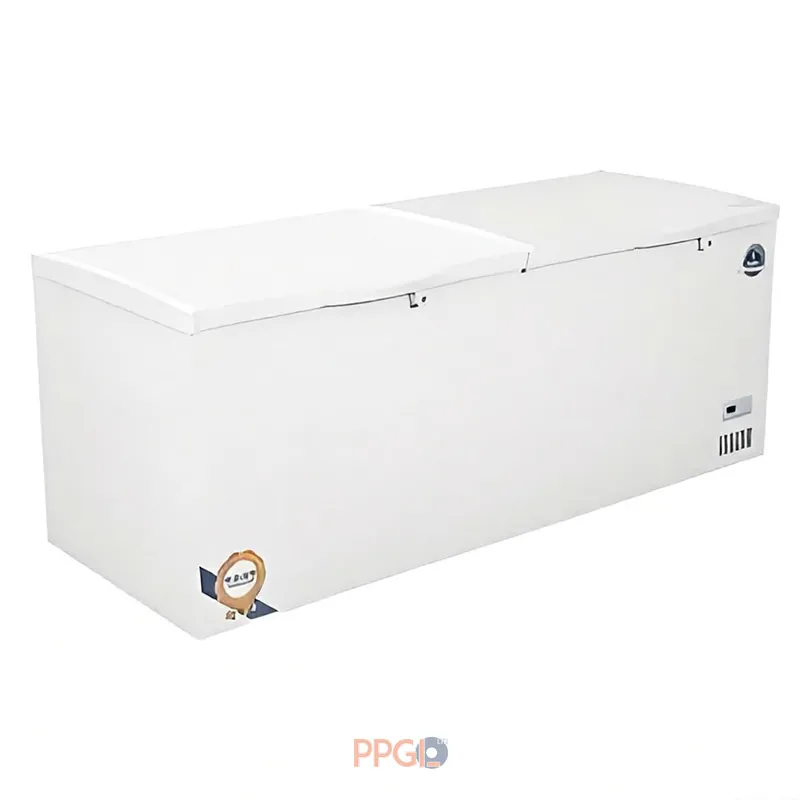

Refrigerator side panels, washing machine bodies, microwave oven housings, air conditioner outdoor units.
VCM Steel Sheets
Vinyl Coated Metal (Laminated)Surface laminated with decorative PET / PVC film (e.g., brushed stainless, wood grain, high-gloss pattern films).
Luxurious visual depth, authentic tactile textures, superior scratch resistance, excellent corrosion resistance & anti-fingerprint.

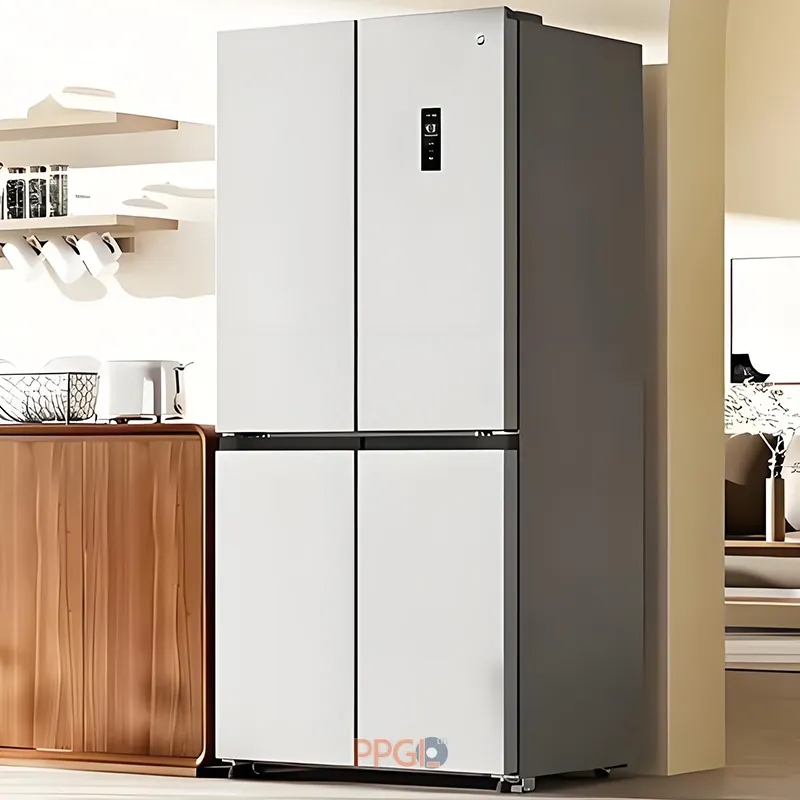

High-end refrigerator door panels, OLED/LED TV backcovers, premium kitchen appliance front panels.

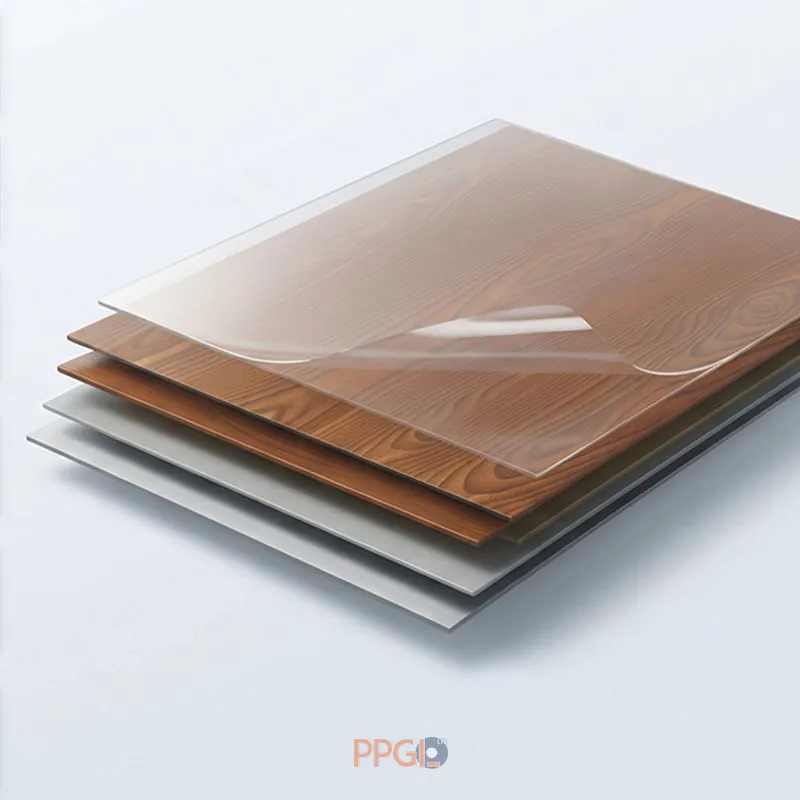

Multi-Layer Coating Architecture
Multi-layer coating options are designed for controlled surface finish and corrosion protection.
Protective Film
PE Film for anti-scratch protection during stamping & assembly.
Top Coat / Decorative Film
PCM: 15–25 μm Appliance Paint | VCM: 100–180 μm Decorative Film
Primer Coating
5–10 μm high-adhesion anti-corrosion primer layer.
Anti-Corrosion Treatment
Chromate-Free eco-friendly passivation chemical layer.
Galvanized Steel Core
CR / EG / GI / GL base metal tailored for deep drawing.
Back Coat
5–12 μm rear service coat optimized for foaming adhesion.
Product Specifications
| Parameter Item | PCM (Prepainted Metal) Specification | VCM (Vinyl Coated Metal) Specification |
|---|---|---|
| Thickness Range | 0.30 mm – 0.80 mm | 0.40 mm – 0.80 mm |
| Width Range | 600 mm – 1380 mm | 600 mm – 1380 mm |
| Base Substrate Options | Cold Rolled Steel (CR), Electro-Galvanized (EG), Hot-Dip Galvanized (GI), Galvalume (GL) | |
| Coating / Film Thickness | Top Coat: 15–25 μm | Primer: 5–10 μm | Laminated PET/PVC Film: 100–180 μm |
| Pre-treatment System | Environmentally Friendly Chromate-Free Chemical Passivation Film | |
| Pencil Hardness | ≥ 2H | ≥ 2H – 3H |
| Formability (T-Bend / Bending) | Formability depends on the substrate, coating system, bend radius, tooling, and agreed test conditions | Formability depends on the substrate, film system, bend radius, tooling, and agreed test conditions |
| MEK Solvent Resistance | ≥ 100 double rubs | ≥ 100 double rubs |
| Protective PE Film | 30–70 μm Laser PE / Standard Self-Adhesive PE Protective Film | |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312; RoHS or REACH requirements apply only where specified and confirmed for the order | |
Quality Control & Shipping Case
High surface cleanliness and minimal color tolerance make your appliances look premium.

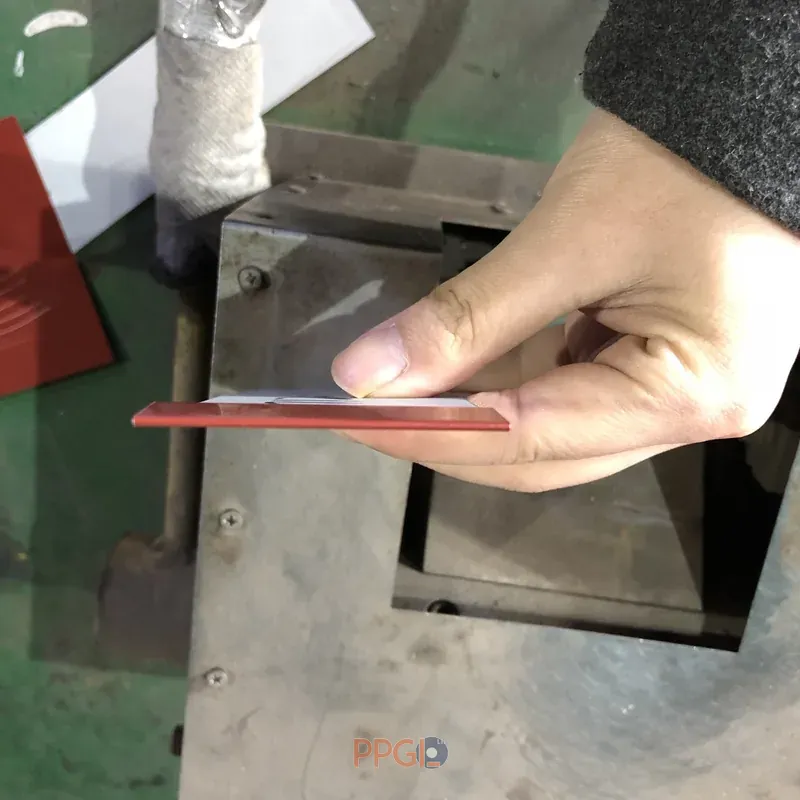

Bending and stamping behavior is checked under the agreed conditions; results depend on the substrate, coating system, tooling, and forming process.
Buyer Concern & FAQ
Q1: What are Home Appliance Steel Sheets & Coils and what options does PPGI.LTD supply?
PPGI.LTD supplies Home Appliance Steel Sheets & Coils, including VCM and PCM materials for refrigerators, washing machines, microwave ovens, and other appliance applications. Available options can be selected according to substrate, coating system, surface finish, color, thickness, width, and forming requirements.
Q2: What is the difference between VCM and PCM appliance-grade steel?
VCM (Vinyl Coated Metal) uses a laminated decorative film and is available in finishes such as solid colors, wood grain, metallic, and hairline patterns. PCM (Pre-Coated Metal) uses a roll-coated paint system to provide smooth and consistent surfaces for appliance panels and components.
Q3: How are thickness and forming performance controlled for appliance steel?
Thickness and surface condition are checked during production according to the agreed product specification. Substrate grade, coating system, paint flexibility, and forming requirements can also be selected according to the intended appliance component and processing method.
Q4: Can protective film be applied to high-gloss or laminated appliance surfaces?
Yes. Transparent or custom printed PE protective film can be applied where required. The film helps protect coated or laminated surfaces from scratches and contamination during handling, cutting, forming, transportation, and assembly. Film type and thickness can be selected according to the surface finish and processing requirements.

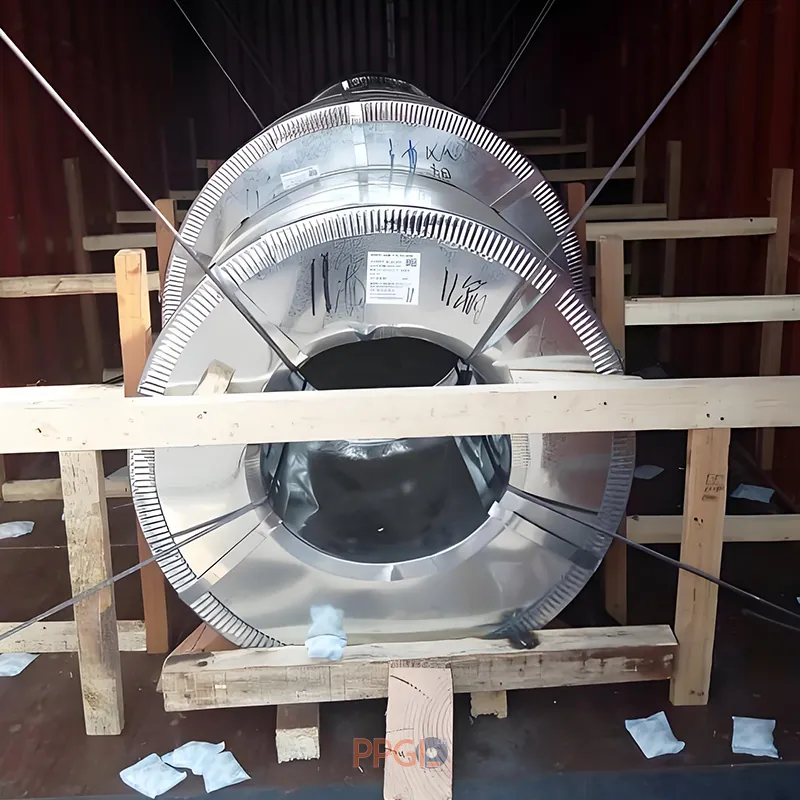

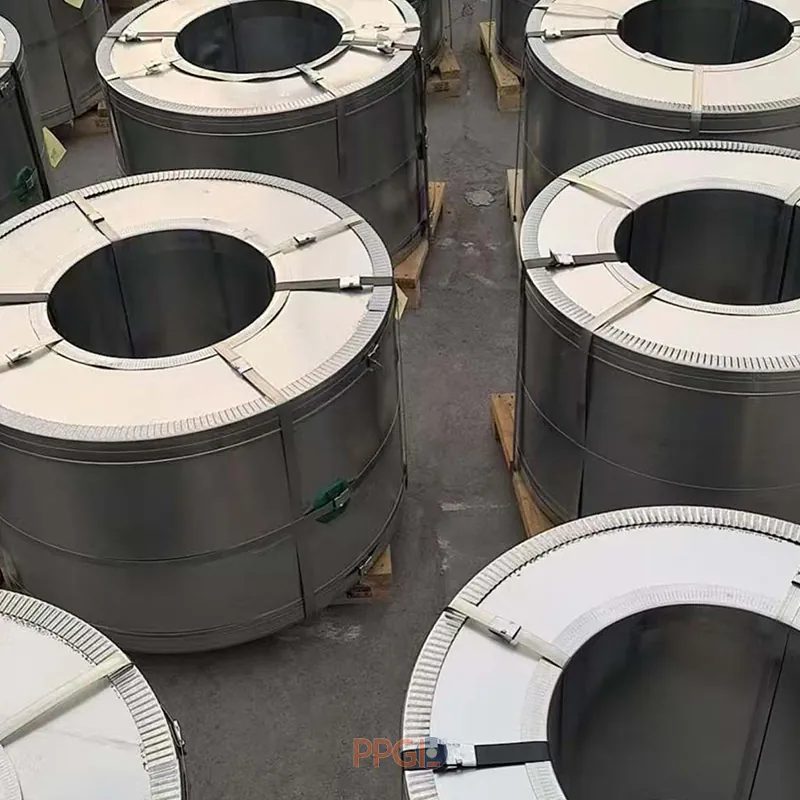

Q5: How are home appliance steel sheets and coils packed for export?
Packaging is selected according to product form, surface finish, shipment method, and customer requirements. Protective wrapping, edge protection, outer steel covers, steel strapping, and supporting materials can be used to help reduce moisture exposure, movement, and surface damage during transportation.
