Stone & Marble Pattern Steel Coil
Stone & Marble Pattern Steel Coil
Stone & Marble Pattern Steel Coil Ideal for Wall Panels, Ceilings & Doors
| Substrate | Galvalume / Galvanized Steel (GL / GI) |
| Surface Design | Marble & Stone Grain (High Gloss / Matt Texture) |

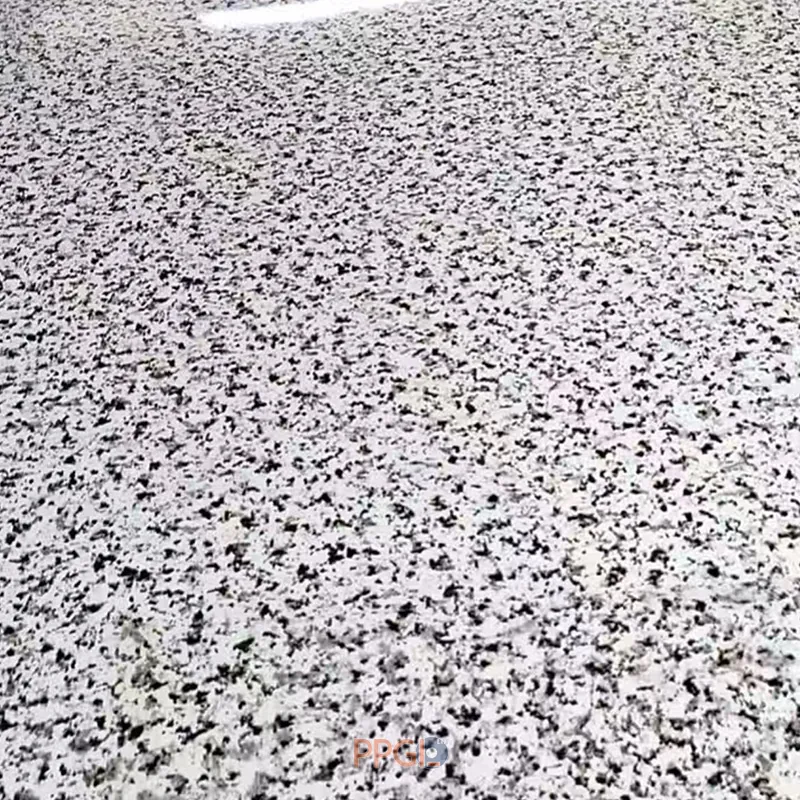

| Popular Patterns | White Carrara Marble, Black Gold, Granite |
| Coating Thickness | Top: 18–25 µm | Back: 5–12 µm |
| Thickness Range | 0.12 – 1.2 mm |
Authentic Stone Look
Natural marble veining in High Gloss and Matt finishes, including White Carrara, Black Gold, and Granite patterns.
Cost & Weight Saving
Significantly lighter than heavy natural stone, reducing structural load and transportation costs.
Formable & Durable
High-grade paint layer prevents cracking during roll forming.
Custom Pattern Designs
Fully customizable colors, veining, and custom printing rollers upon request.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Stone & Marble Pattern Steel Coil (Patterned PPGL/PPGI) |
| Substrate Material | Galvalume Steel (GL) / Galvanized Steel (GI) |
| Standard Compliance | ASTM A755, EN 10169, JIS G3322 |
| Surface Finish | High Gloss Polish / Matt Textured Finish (White Carrara, Black Gold, Granite) |
| Thickness Range | 0.12 – 1.2 mm |
| Width Range | 600 – 1250 mm |
| Zinc/Aluzinc Coating | AZ30 – AZ150 g/m² or Z30 – Z275 g/m² |
| Coil Inner / Outer Diameter | ID: 508 / 610 mm; OD: Max 1500 mm |
| Coil Weight | 3 – 8 Metric Tons per coil (Customizable) |
Quality Control & Shipping Case
Buyer Concerns (FAQ）
Q1: Why choose marble pattern steel over natural stone panels?
A: Marble pattern steel is lightweight, fireproof, waterproof, and significantly easier to install, offering the luxury look of White Carrara or Black Gold marble at a fraction of the material and labor cost.
Q2: What surface finishes and stone colors are available?
A: We supply both High Gloss and Matt Stone Textured finishes in popular designs including White Carrara Marble, Black Gold Marble, and Granite patterns, as well as custom patterns.
Q3: Can a protective film be applied to the glossy or textured marble surface?
A: Yes. We apply a specialized protective PE film over the surface to prevent scratches, dust, and handling damage during roll forming and job-site installation.
Q4: What are the primary applications for Stone & Marble Pattern Steel Coil?
A: They are widely used for interior wall cladding, decorative ceilings, elevator interiors, security doors, modular house facades, and commercial wall partitions.
