PPGL Roofing Sheet
PPGL Roofing Sheet
Pre-Painted 55% Al-Zn Corrugated & Trapezoidal Profiles for Roofing & Cladding
| Substrate | Pre-Painted Galvalume Steel (PPGL / 55% Al-Zn) |
| Roofing Profiles | Corrugated Waves / Trapezoidal Box (IBR) / Tile Profile |
| Feeding Width | 750 / 914 / 1000 / 1200 / 1220 / 1250 mm |
| Effective Width | 665 / 800 / 820 / 900 / 915 / 1050 mm |
| Thickness Range | 0.115 – 0.8 mm (Customizable) |
Custom Roofing Profiles

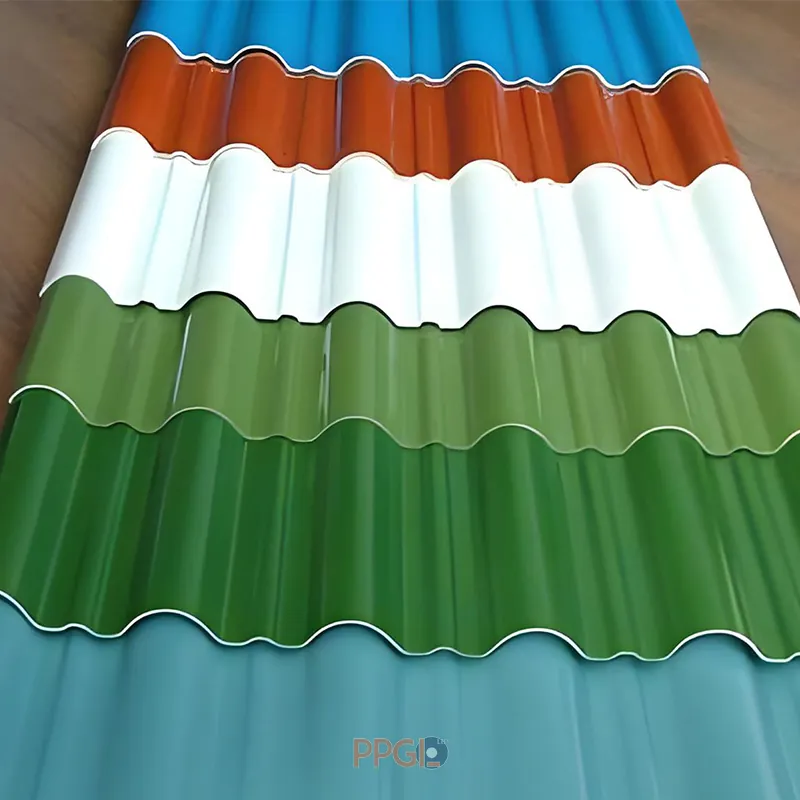

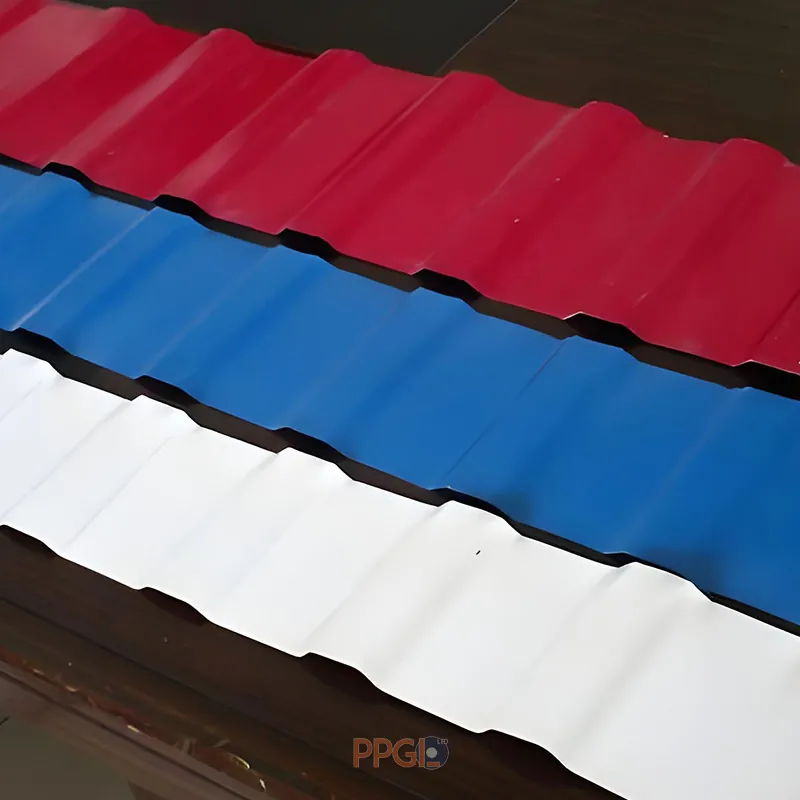

Corrugated Wave Profile

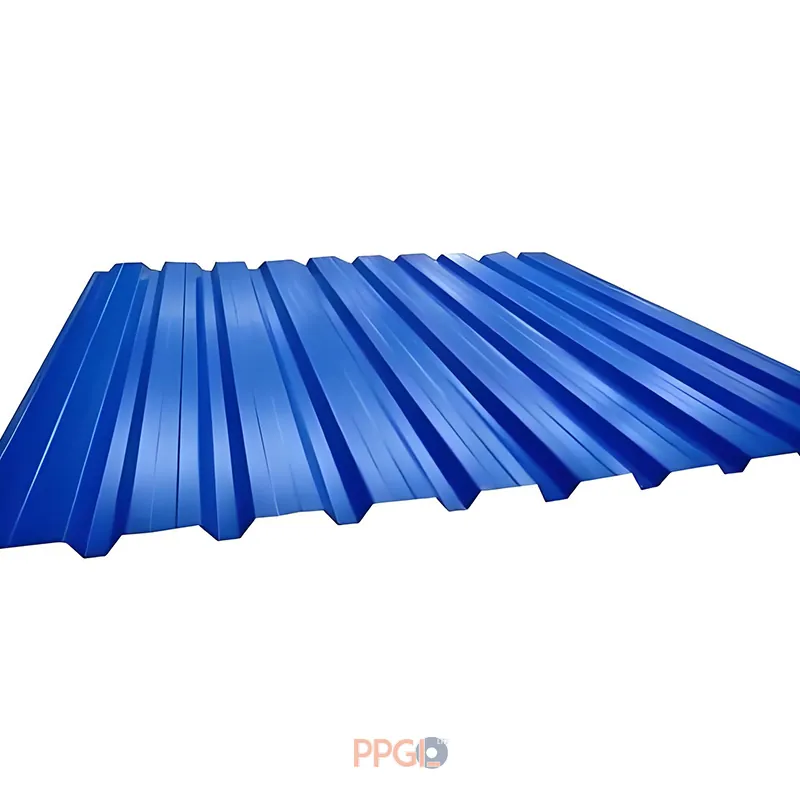

Trapezoidal Box Profile

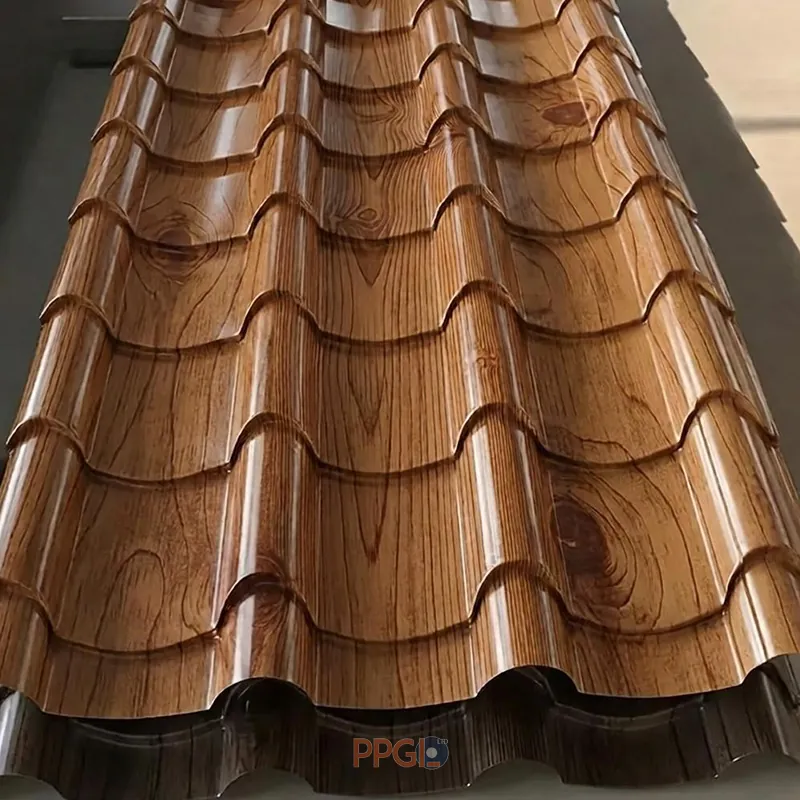

Glazed Step Tile Profile

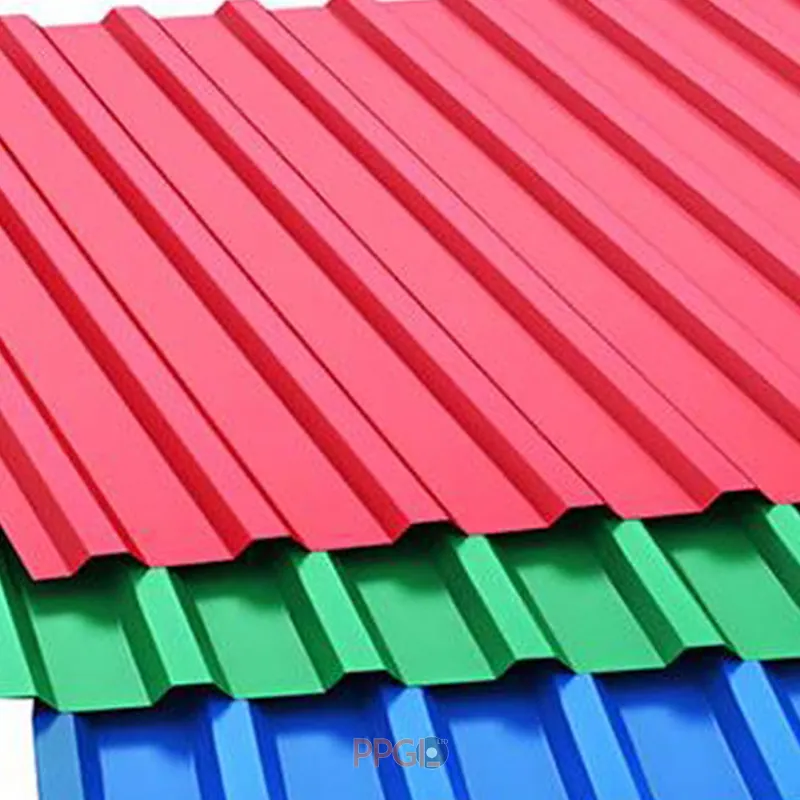

IBR Profile
Multiple Profiles
Corrugated wave, trapezoidal box (IBR), and step tile profiles for versatile architectural projects.
Custom Paint Coating
Tailored PE, HDP, or PVDF coatings in full RAL colors with optional protective film.
Heat Reflectivity & Durability
High thermal reflection from 55% Al-Zn core combined with UV-resistant topcoats.
High Formability
Flexible primer and topcoat system prevents paint cracking or peeling during roll forming.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Pre-Painted Galvalume Roofing Sheet (PPGL Corrugated & Trapezoidal Sheet) |
| Available Profiles | Traditional Corrugated Waves, Trapezoidal / Box Profile, IBR Roofing Profile, Step Tile |
| Primary Applications | Industrial Warehouses, Commercial Roofs, Agricultural Sheds, Wall Cladding & Architectural Projects |
| Standard Compliance | ASTM A755, EN 10169, JIS G3322 |
| Feeding Width (Raw Coil) | 750mm, 914mm, 1000mm, 1200mm, 1220mm, 1250mm |
| Effective Cover Width | 665mm, 800mm, 820mm, 900mm, 915mm, 1050mm (Customizable) |
| Thickness Range | 0.115 – 0.8 mm |
| Paint Coating System | Top Paint: 15–25 µm | Back Paint: 5–12 µm (PE / HDP / PVDF Options) |
| Color Selection | Standard RAL Colors (e.g., RAL 9002, RAL 5012, RAL 3001) or Custom Color Matching |
| Base Metal Al-Zn Mass | AZ30 – AZ150 g/m² (55% Aluminum, 43.4% Zinc, 1.6% Silicon) |
| Mechanical Hardness | Full Hard (G550 / HRB 85–95) or Commercial Grade (G300) |
| Bundle Weight / Packaging | 2 – 5 Metric Tons per seaworthy bundle with steel pallets |
Quality Control & Shipping Case

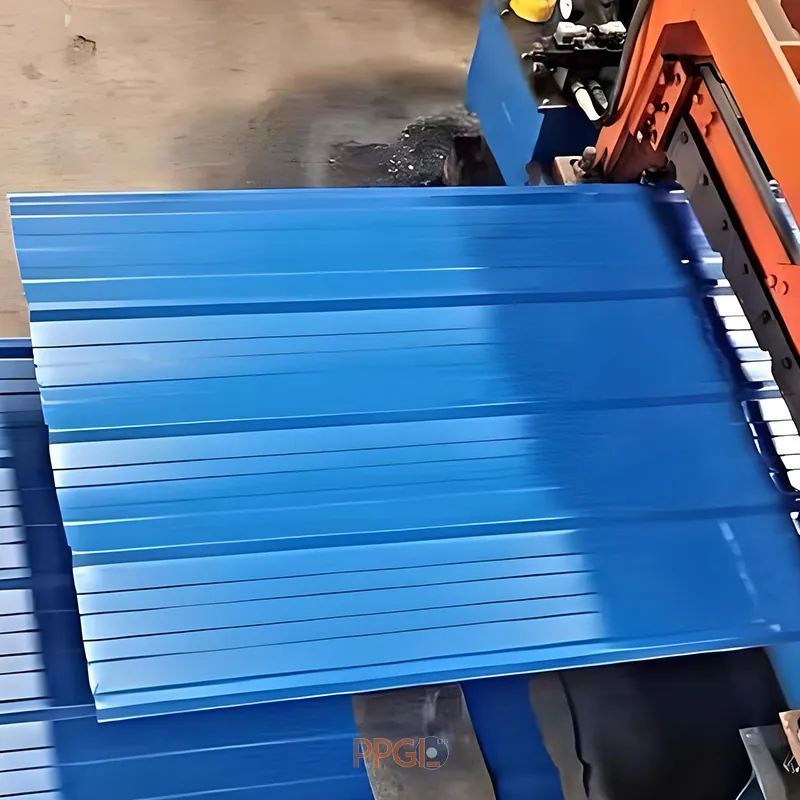

Rubber-coated forming rollers prevent paint scratching and coating abrasion during processing.
Strict batch testing on paint thickness, MEK wipe resistance, gloss level, and color match.
Heavy-duty waterproof kraft paper and metal edge protectors shield sheets from humidity and transit impact.
High-tensile steel wire cabling and bracing ensure zero movement or friction damage inside containers.
Buyer Concerns (FAQ）
Q1: What is the primary difference between PPGL and PPGI roofing sheets?
A: Corrugated sheets feature traditional round wave profiles suitable for standard residential or agricultural roofs, while trapezoidal (box profile / IBR) sheets offer higher water discharge capability and structural strength, making them ideal for industrial facilities and commercial roofs.
Q2: How do I choose between PE, HDP, and PVDF paint coatings for PPGL roofing sheets?
A: Feeding width is the initial flat GI coil width (e.g., 1000mm or 1200mm). After roll forming, the effective cover width (e.g., 800mm or 900mm) represents the actual installation coverage per sheet after overlapping. We assist you in calculating sheet quantities to minimize material waste.
Q3: How do I choose the correct feeding width and effective cover width for my roofing project?
A: For standard 20ft containers, maximum length is usually kept within 5.8 meters (5800mm); for 40ft containers, lengths up to 11.8 meters (11800mm) are recommended to maximize space utilization and cut ocean freight costs.
Q4: What sheet lengths are recommended for sea container transportation?
A: Yes. We specialize in ultra-thin and full-hard roofing sheets starting from 0.115 mm, with zinc coating weights ranging from Z30 up to Z275 g/m² to meet different budget and durability requirements.
