PPGI Steel Coil
PPGI Steel Coil
Prepainted Galvanized Steel Coil (Custom RAL Colors)

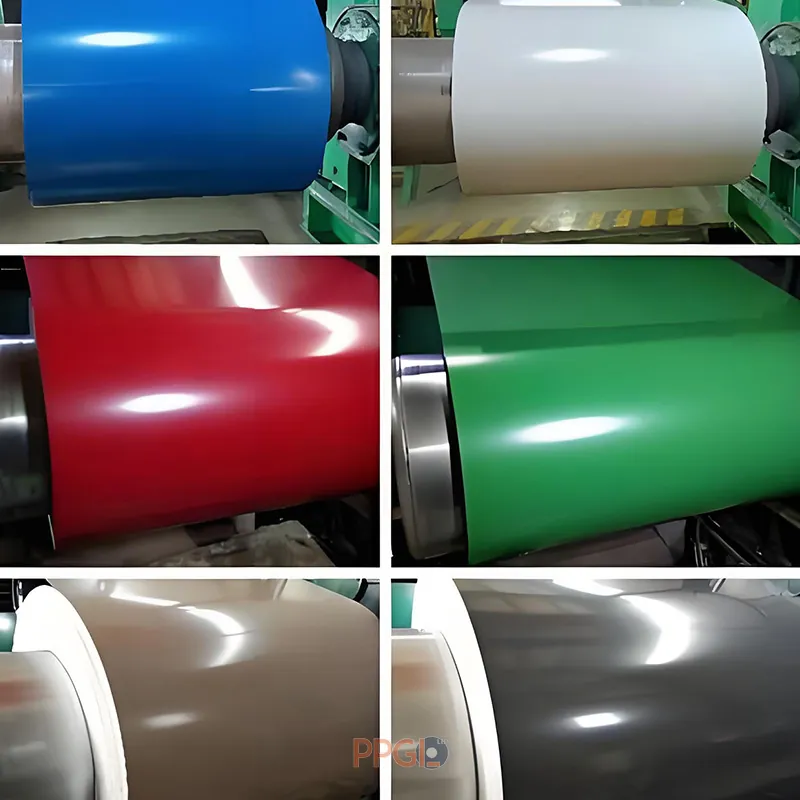

Wide Color Selection
Multiple RAL colors and surface finishes available for different applications.
Consistent Product Quality
Material, coating and surface checks throughout production.
Flexible Coating Adhesion
Good coating flexibility and adhesion for forming and profiling.

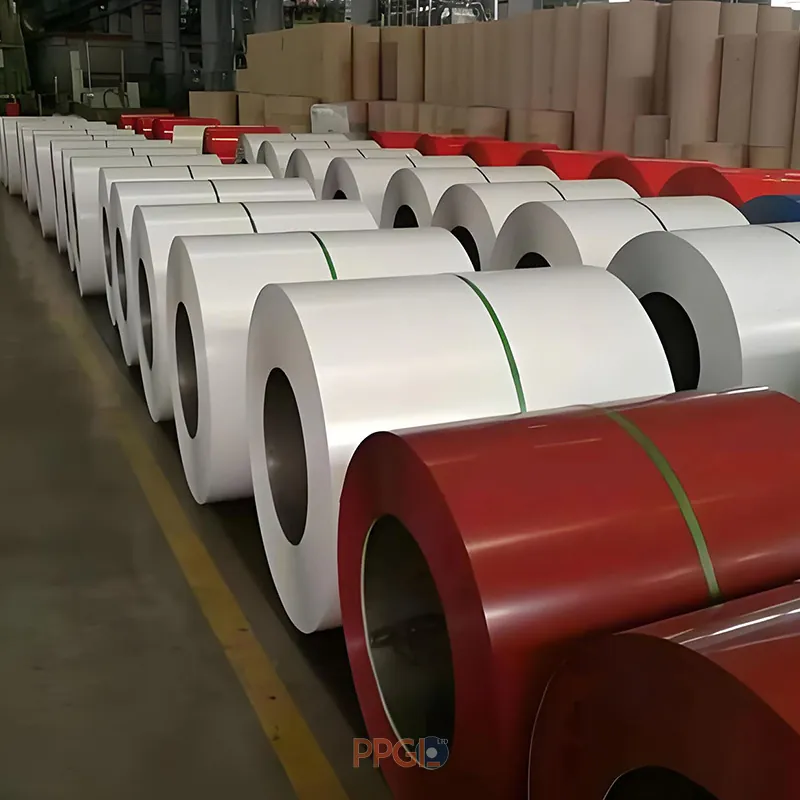

Reliable Supply Capacity
Stable production planning and experienced export coordination.
Product Specifications
| Parameter | Details |
|---|---|
| Product Type | PPGI Steel Coil |
| Standard | ASTM A755 / EN 10169 / JIS G3312 |
| Substrate & Grade | GI (DX51D + Z30–Z275 g/m²) |
| Paint System | PE / HDP / PVDF / SMP Options |

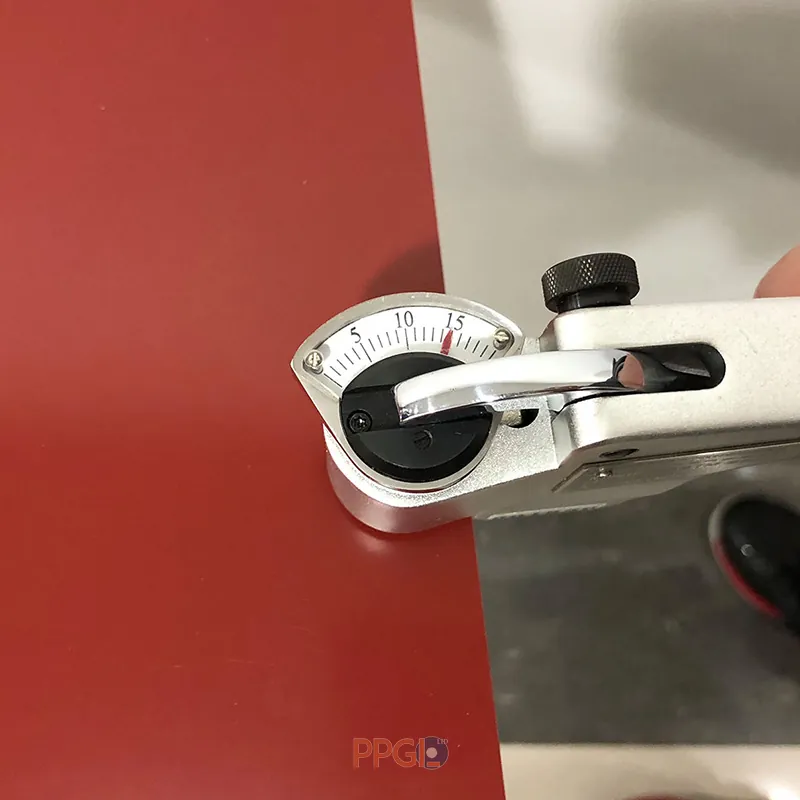

| Paint Thickness | Top: 15–50 µm, Back: 5–30 µm (Customizable up to 100um) |
| Thickness | 0.12–1.2 mm |
| Width | 600–1500 mm |
| Coil Weight | 3–8 metric tons |

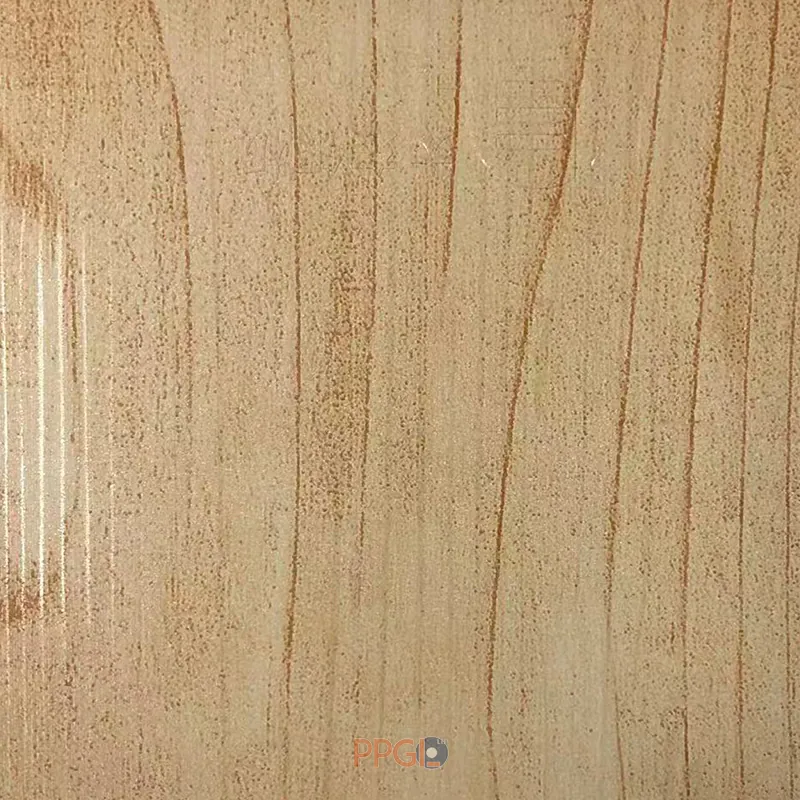

| Color & Surface | Full RAL Chart, Matt, Wrinkle, Wood & Brick Patterns |
| Inner Diameter | 508 / 610 mm |

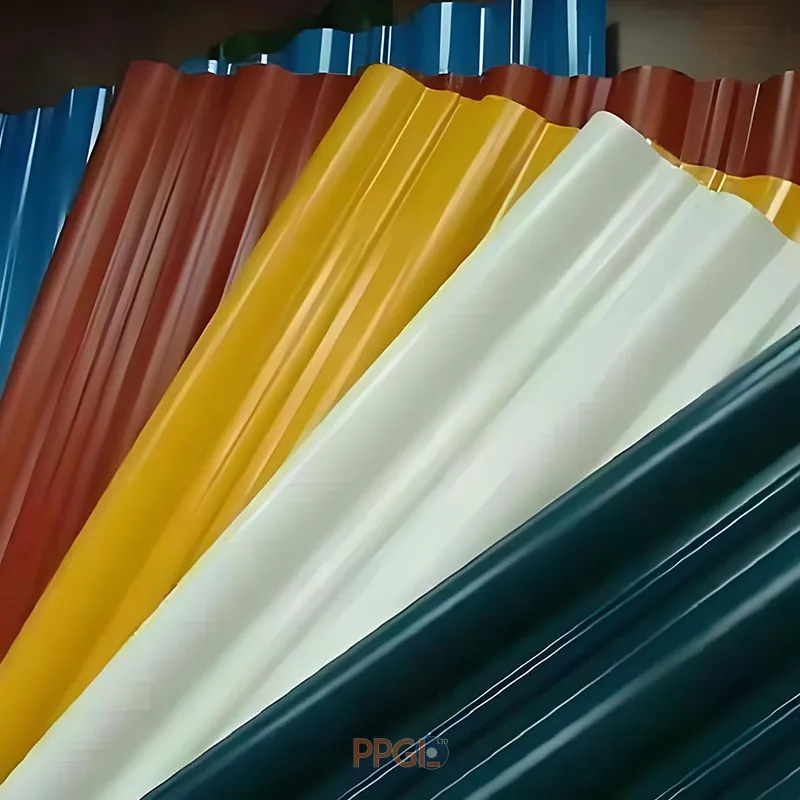

| Application | Roofing, wall cladding, doors, sandwich panels, appliances |

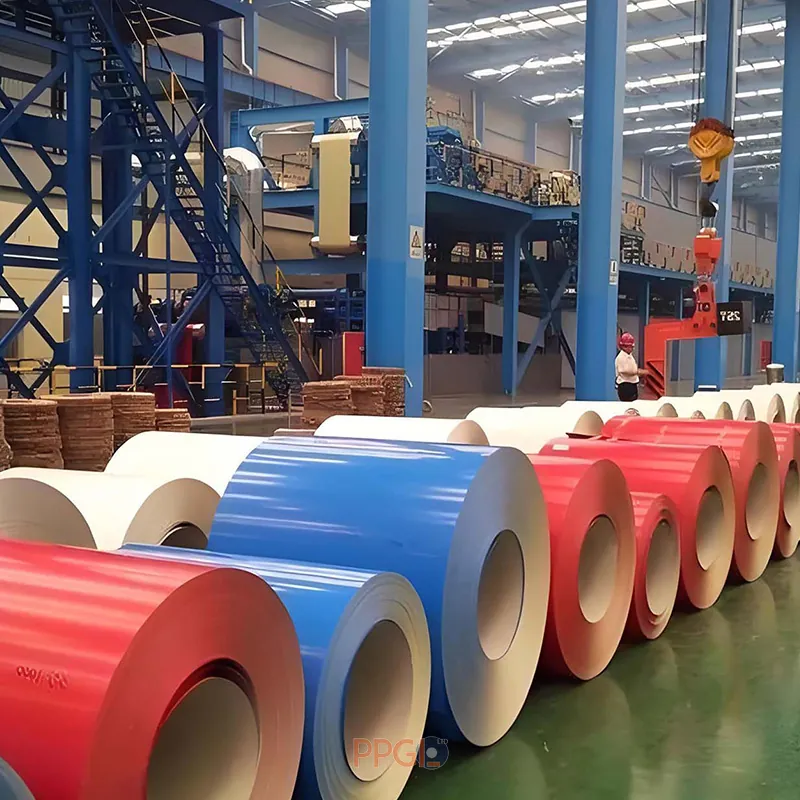

Quality Control & Shipping Case

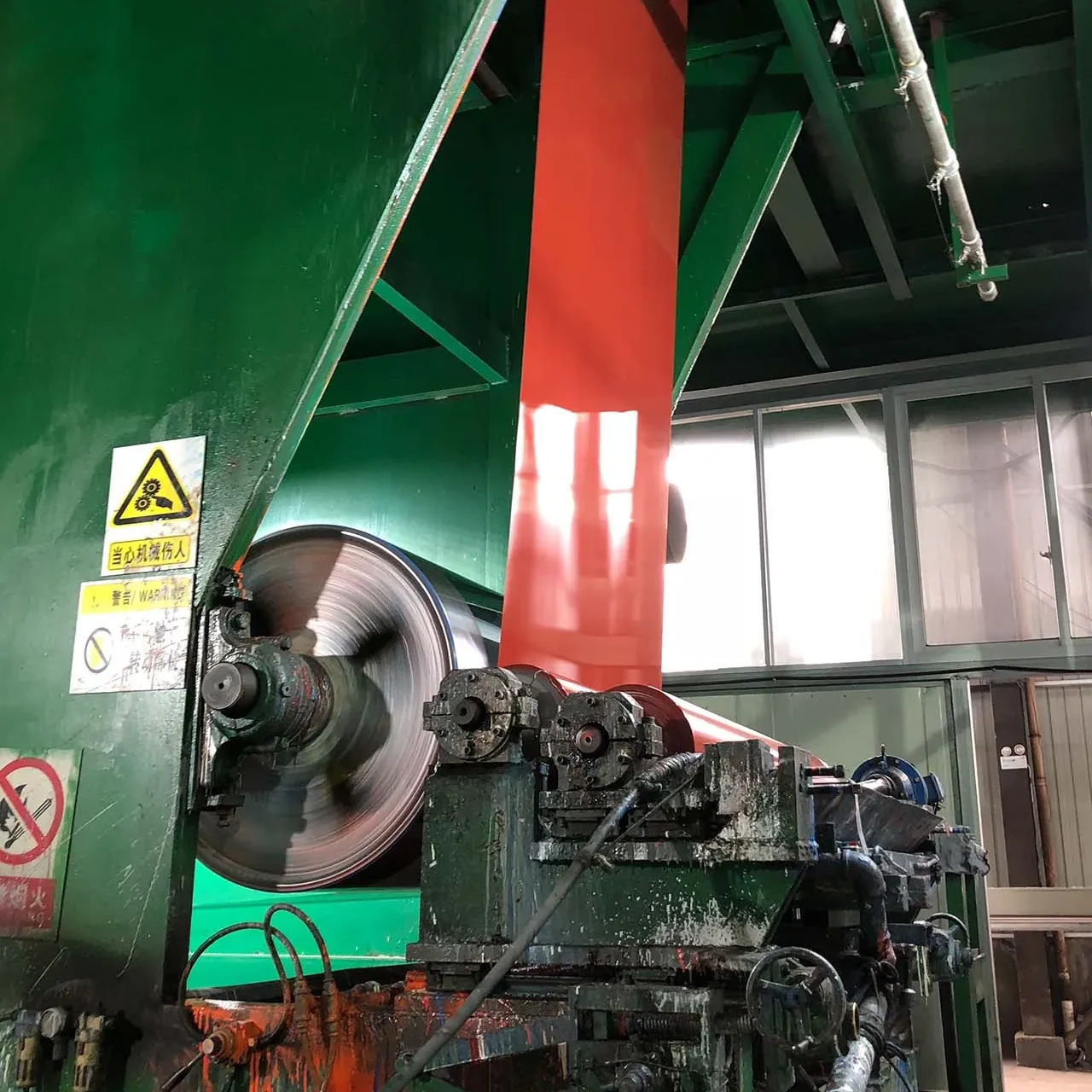

Key production parameters are monitored according to the confirmed order specification.
Shipment timing and export documents are coordinated according to the confirmed schedule.
Buyer Concern & FAQ
What specifications are available for PPGI steel coil?
Common supply options include thicknesses from 0.12 to 1.20 mm and widths from 600 to 1500 mm. Final substrate, grade, coating weight, paint system, dimensions, and tolerances are confirmed in the order specification.
How is PPGI color controlled?
Color is checked against the confirmed RAL reference or approved sample and the agreed production tolerance.
Which paint system should I choose?
PE, SMP, HDP, and PVDF options are selected according to the forming process, exposure environment, service requirements, and project specification.
Can PPGI be supplied for forming applications?
Formability targets can be agreed for suitable substrate and coating combinations. Actual results depend on material grade, paint system, thickness, tooling, bend radius, and processing conditions.

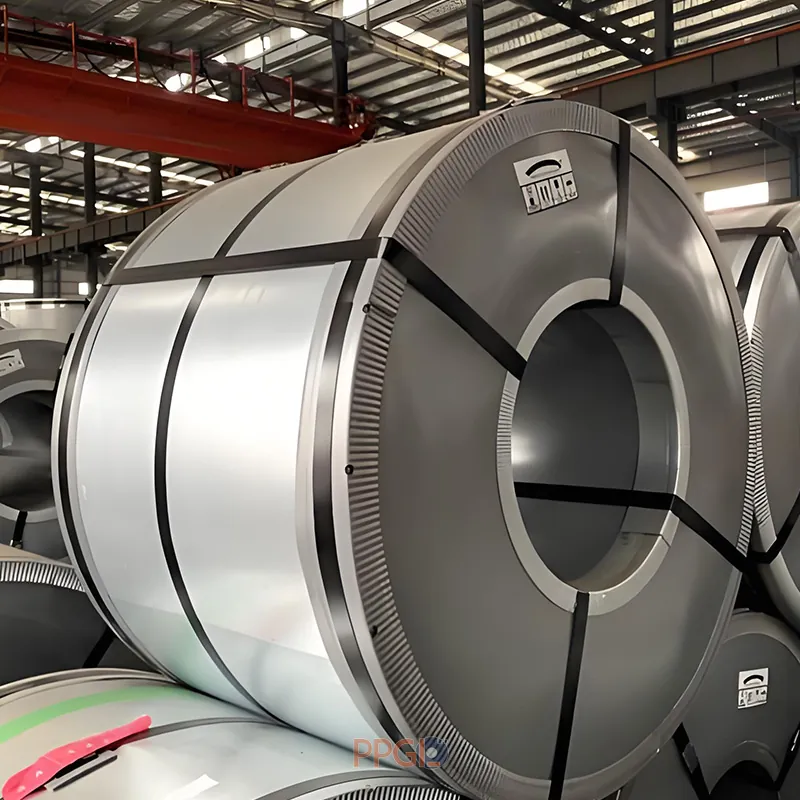

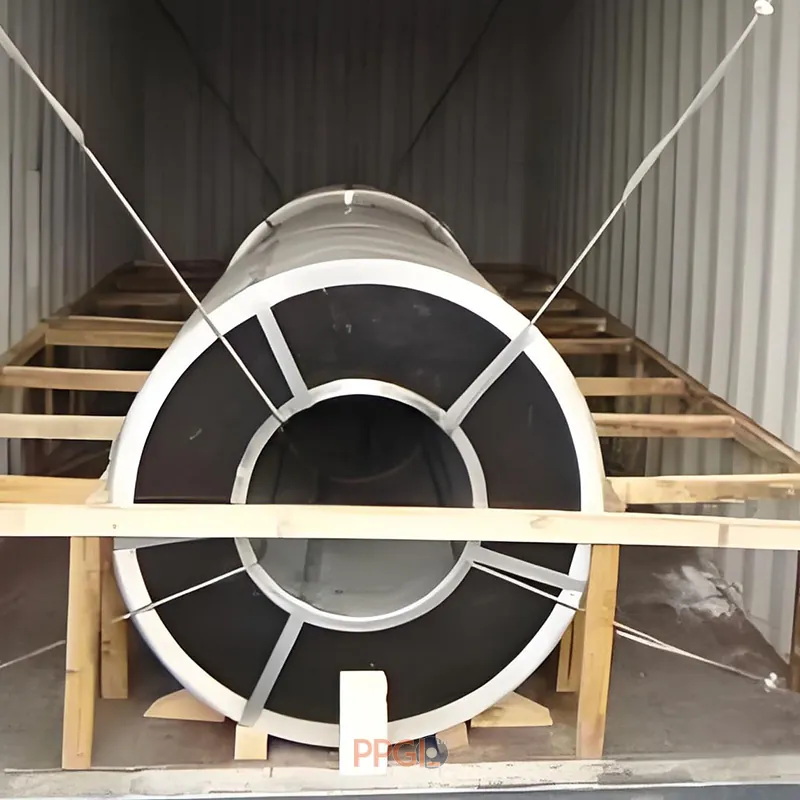

How is PPGI packed for export?
Packaging is selected according to coil dimensions and shipment requirements and may include protective wrapping, edge protection, steel strapping, and secured container loading.
