PPGI Paint Coating Guide: PE, SMP, HDP & PVDF
Standard PE to High-Performance SMP, HDP & PVDF | Custom Coating Solutions by PPGI.LTD
This technical PPGI Paint Coating Guide compares PE, SMP, HDP, and PVDF resin options to help B2B buyers select optimal steel coil specs.
PE Standard
Cost-EffectivePPGI paint specification for inland general roofing.
SMP Hardness
High Scratch DefenseResistant against windy desert sandstorms.
HDP High-UV
UV Resistance PPGIEngineered for extreme desert and tropical heat.
PVDF Defense
Corrosion ResistantDesigned for heavy marine salt spray zones.
PPGI Paint Coating Guide: 4 Main Systems
Our coil coating production strictly follows international corrosion protection criteria aligned with ISO 12944 Paint & Coating Standards.
PE (Polyester Coating)
PE Standard

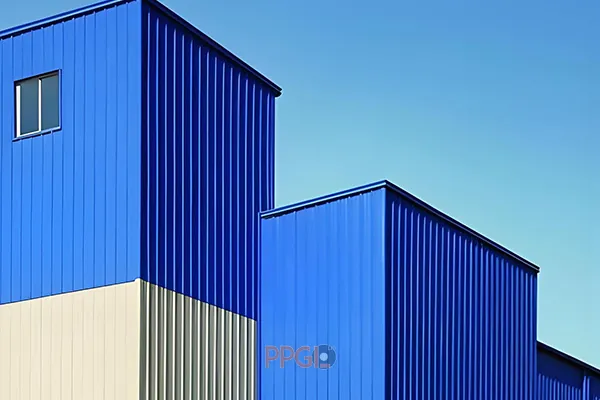

Best For: Inland commercial warehouses, standard roofing, and interior wall cladding.
Key Advantage: Highly economical and versatile custom color coated steel coil solution from our factory with excellent roll-forming flexibility.
SMP (Silicone Modified)
SMP Hardness

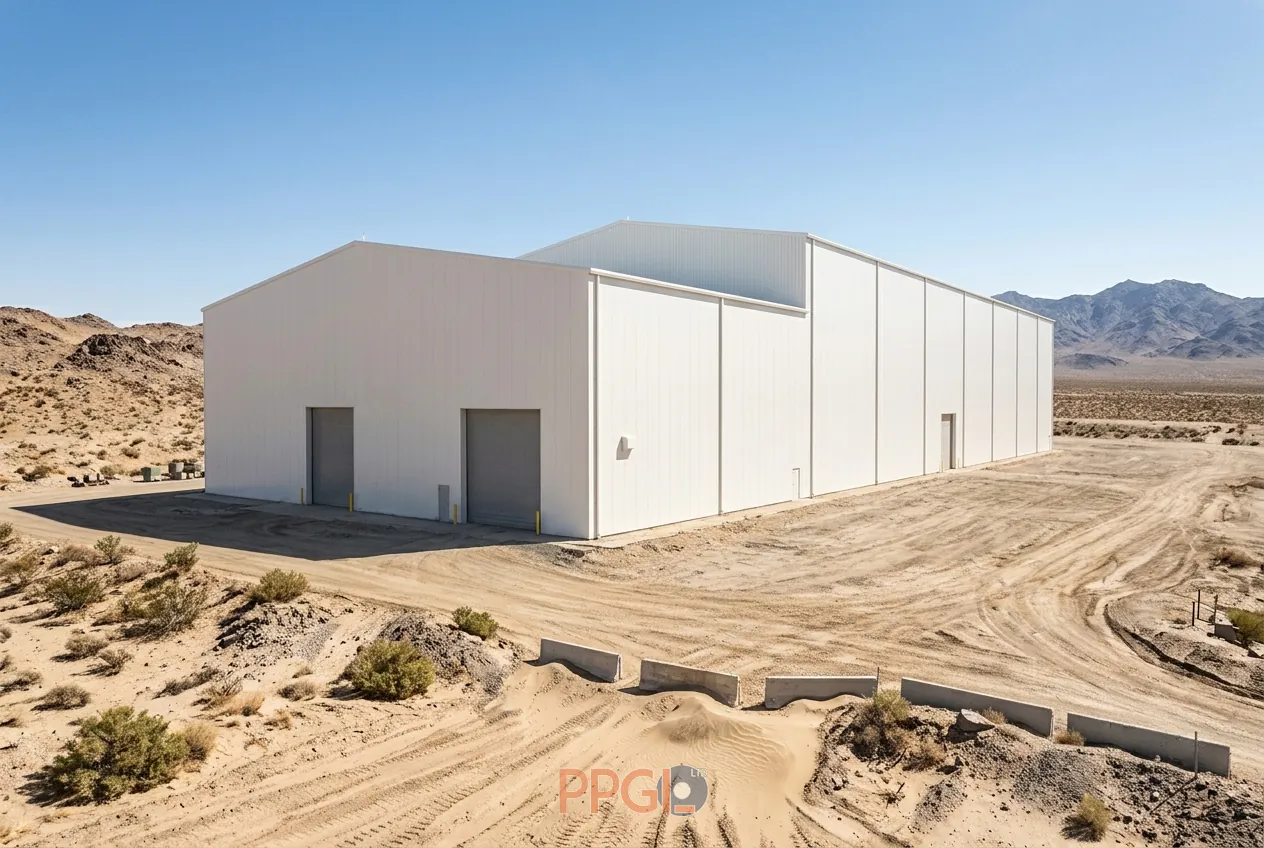

Best For: Arid desert fringe regions and high-wind environments subject to frequent sandstorms.
Key Advantage: Enhanced surface hardness providing superior scratch resistance against abrasive windblown sand in harsh climates.
HDP (High Durability)
HDP High-UV

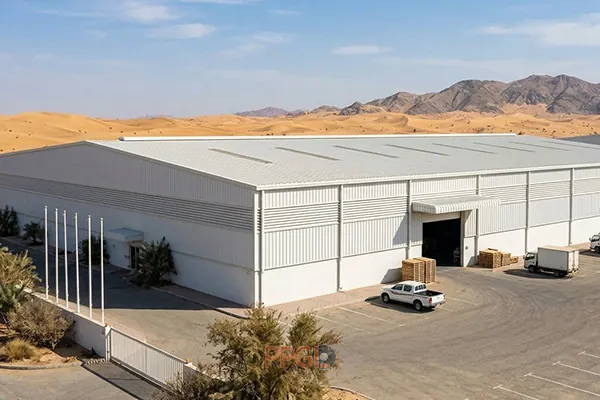

Best For: Middle East desert heat zones and tropical regions under intense UV exposure.
Key Advantage: High-molecular resin structure providing outstanding UV resistance PPGI performance to prevent chalking and rapid fading.
PVDF (Fluorocarbon)
PVDF Defense

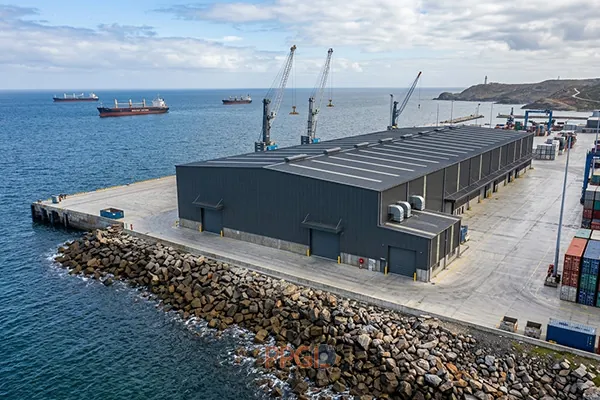

Best For: Coastal structures (<2 km from shore) and heavy industrial chemical zones.
Key Advantage: Maximum chemical inertness making it the premier corrosion resistant PPGL choice against marine salt spray.
Buyer Concern & FAQ
How do I choose between PE, SMP, HDP, and PVDF paint coatings for my target market?
As a direct steel coil manufacturing factory, PPGI.LTD recommends selecting paint systems based on local climate exposure and budget requirements. PE (Polyester) is ideal for standard inland warehouses and general architectural roofing. For windy regions subject to abrasive sandstorms, SMP (Silicone Modified Polyester) provides enhanced surface hardness. For extreme desert heat and strong radiation across the Middle East, HDP (High Durability Polyester) delivers high UV resistance to prevent premature chalking. For coastal environments located within 2 km of salt spray, PVDF (Fluorocarbon) offers maximum chemical inertness and corrosion defense.
What standard paint specifications and coat thicknesses does PPGI.LTD produce?
Our factory offers fully customizable paint coating structures. Standard top paint film thickness ranges from 15 µm to 25 µm paired with a 5 µm to 10 µm back primer, achieving total coating specifications such as Top 15+5 µm for regular PE, 20+5 µm for HDP/SMP, and up to 25+5 µm for heavy-duty PVDF orders. Custom double-side coating options and precise RAL color matching are fully supported.
Why does PVDF offer superior salt spray performance compared to standard HDP coatings?
PVDF coatings contain 70% fluorocarbon resin, forming an exceptionally strong carbon-fluorine chemical bond. This inert molecular structure prevents salt fog moisture, acid compounds, and industrial airborne chemicals from reacting with the steel substrate. While HDP excels at preventing UV gloss loss under intense desert sunlight, PVDF remains the preferred specification for severe coastal marine corrosion environments.
