3D Textured Wood Grain Steel Coil
3D Textured Wood Grain Steel Coil
Real Timber Touch, Weather-Resistant Strength
| Substrate | Galvalume / Galvanized Steel (GL / GI) |
| Surface Design | 3D Textured Wood Grain (Embossed Finish) |
| Coating Thickness | Top: 20–30 µm | Back: 5–12 µm |
| Thickness Range | 0.14 – 1.2 mm |
| Coil Width | 600 – 1250 mm |
Corrosion-Resistant Core
Metallic substrate base helps protect the sheet against rust and ambient moisture.

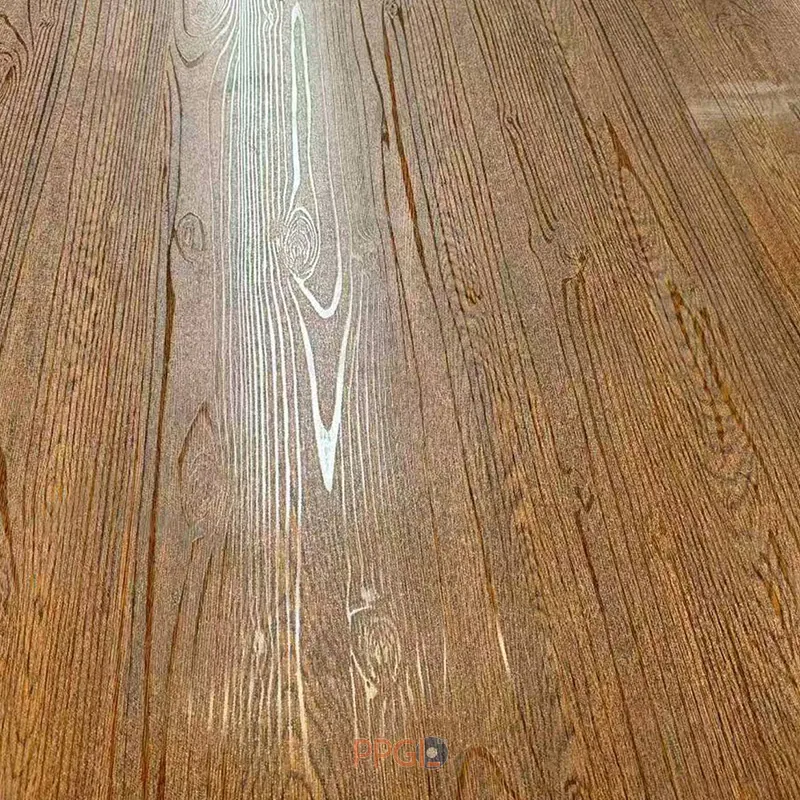

Tactile 3D Grain
Mechanical embossing creates a real physical wood texture with depth and authentic feel.
Formable Paint Layer
Quality primer treatment helps maintain pattern integrity during roll forming.

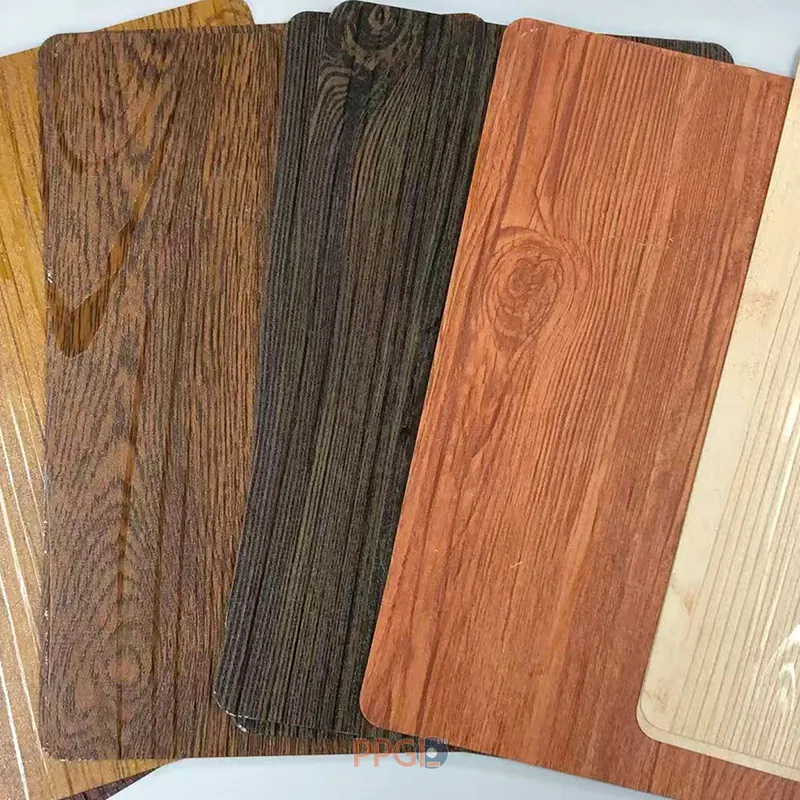

Flexible Pattern Options
Multiple wood grain designs, gloss levels, and sheet sizes available to match local markets.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 3D Textured Wood Grain Steel Coil (Embossed PPGL/PPGI) |
| Substrate Material | Galvalume Steel (GL) / Galvanized Steel (GI) |
| Standard Compliance | ASTM A755, EN 10169, JIS G3322 |
| Surface Finish | 3D Embossed Tactile Texture, Printed Wood Pattern |
| Thickness Range | 0.14 – 1.2 mm |
| Width Range | 600 – 1250 mm |
| Zinc/Aluzinc Coating | AZ30 – AZ150 g/m² or Z30 – Z275 g/m² |
| Coil Inner / Outer Diameter | ID: 508 / 610 mm; OD: Max 1500 mm |
| Coil Weight | 3 – 8 Metric Tons per coil (Customizable) |
Quality Control & Shipping Case
Precision roller printing ensures stable pattern alignment without blur or misregistration.
Every batch undergoes wood grain matching tests to ensure sharp and consistent details.
Waterproof paper, protective plastic film, and steel strapping prevent transit damage.
Buyer Concern & FAQ
Q1: What is PPGI.LTD’s 3D Textured Wood Grain Steel Coil and what makes it unique?
PPGI.LTD is a direct manufacturer of 3D Textured Wood Grain Steel Coils, combining multi-color roller printing with specialized mechanical embossing technology over galvanized or galvalume steel substrates. Engineered for high-end architectural wall paneling, luxury door skins, and outdoor decking accents, our pre-painted 3D wood steel provides a tactile, multi-dimensional timber feel, enhanced surface rigidity, and superior corrosion resistance.
Q2: How is the tactile 3D wood texture created on 3D Textured Wood Grain Steel Coils?
After printing the detailed organic wood design, the steel strip passes through precision mechanical embossing rollers under controlled pressure and temperature. This process imprints realistic, tactile wood grain grooves directly into the coated metal surface, recreating the natural feel and depth of genuine timber.
Q3: Does the 3D embossing process affect the roll-forming performance of 3D Textured Wood Grain Steel Coils?
No. Our 3D Textured Wood Grain Steel Coils utilize high-flexibility organic coatings and optimized substrate elasticity. The paint layer maintains tight adhesion during bending and roll-forming, preventing micro-cracking, paint peeling, or structural distortion along the textured grooves.
Q4: Can a protective film be applied to the uneven surface of 3D Textured Wood Grain Steel Coils?
Yes. We use specialized high-tack, flexible PE protective film (50–80 microns) designed specifically for embossed surfaces. It conforms smoothly to the 3D grain contour, safeguarding the textured finish against friction, abrasion, and contamination during processing, transport, and installation.
Q5: What are the primary architectural and commercial applications for 3D Textured Wood Grain Steel Coils?
3D Textured Wood Grain Steel Coils are widely used in luxury exterior wall cladding, villa siding, security door panels, modular container house facades, interior feature walls, and commercial acoustic ceiling panels where authentic visual and tactile timber qualities are required.
