Printed Steel Coil
Printed Steel Coil
Printed Pattern Galvanized Steel Coil & Galvalume Steel Coil
| Substrate | Galvanized (GI) / Galvalume (GL) Steel Coil |

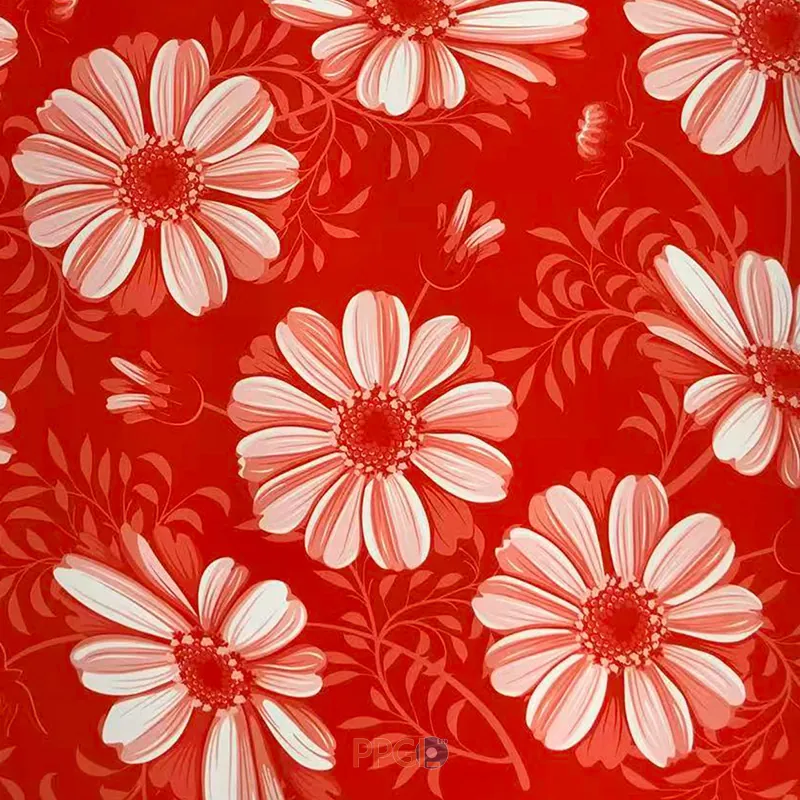

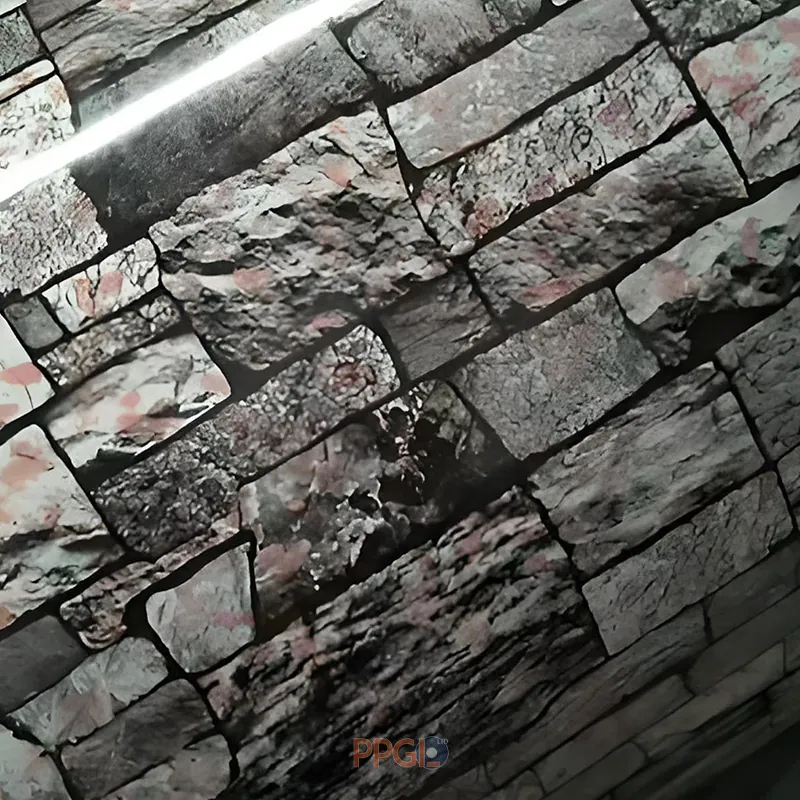

| Pattern Designs | Brick, Camouflage, Flower, Marble, Tile, Custom Patterns |
| Paint System | PE / HDP Coating with Clear Protective Finish |
| Thickness Range | 0.12 – 1.2 mm |
| Surface Protection | Clear Topcoat / Optional PE Protective Film |
Rich Designs
Wide range of brick, marble, and custom graphics for your market.
Clear Topcoat

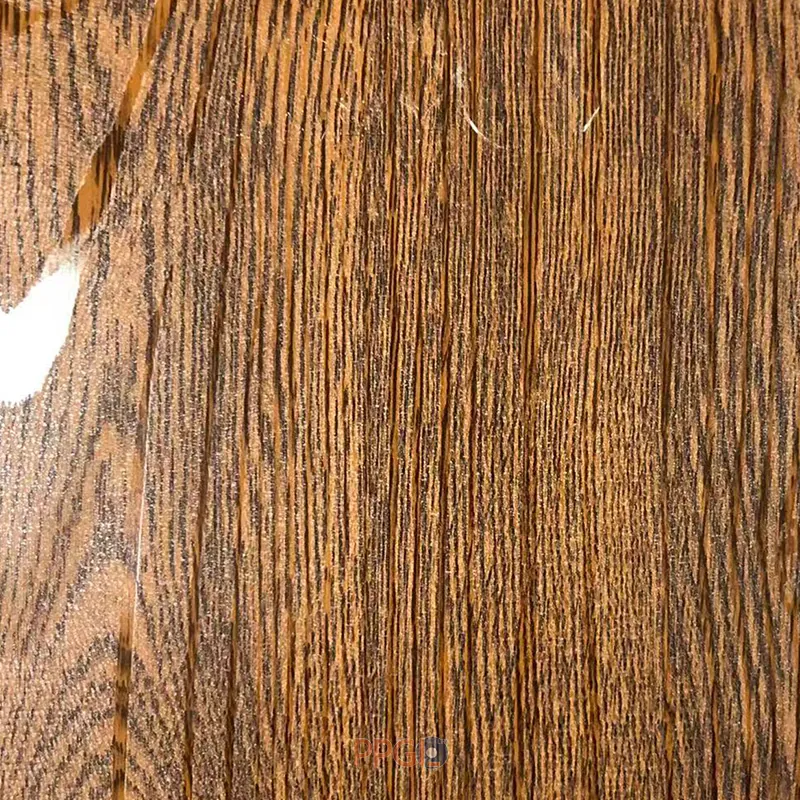

Authentic wood texture gives your products a premium look at a fraction of natural wood cost.
Stable Colors
Precise roller printing keeps colors and patterns consistent per batch.
Custom Processing
Precision slitting and cut-to-length services tailored to your exact size.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Standard Printed Steel Coil PPGI / PPGL |
| Substrate Material | Hot-Dipped Galvanized Steel (GI) / Galvalume Steel (GL) |
| Standard Compliance | ASTM A653, ASTM A792, JIS G3312, EN 10169 |
| Pattern Categories | Brick, Stone, Camouflage, Marble, Grass, Floral, Customized Designs |
| Coating Structure | Base Paint + Printed Pattern Layer + Protective Clear Varnish (PE / HDP) |
| Thickness Range | 0.115 – 1.2 mm |
| Width Range | 600 – 1250 mm |
| Zinc/AZ Coating | Z30 – Z180 / AZ30 – AZ150 g/m² |
| Coil Weight & ID | 3 – 6 Metric Tons per coil; ID: 508 / 610 mm |
| Primary Applications | Roofing sheets, wall cladding, sandwich panels, security doors, interior decoration |

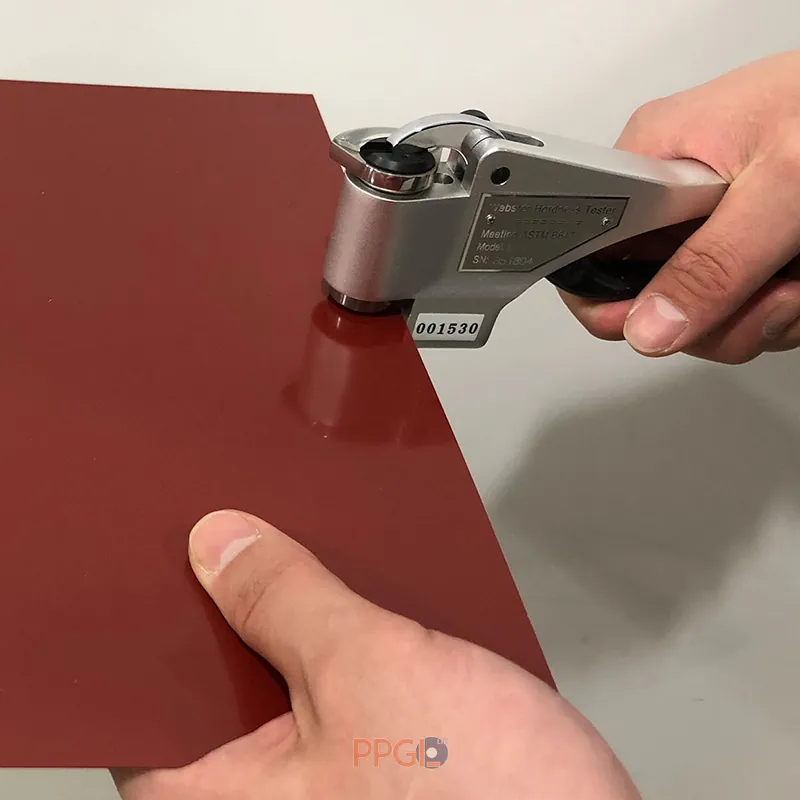

Quality Control & Shipping Case
Buyer Concerns (FAQ）
Q1: Can you produce custom printed patterns based on physical samples or photos?
A: Yes. We offer standard patterns (brick, stone, camouflage) and can customize printing rollers based on your sample design.
Q2: Will the printed pattern fade or scratch during roll-forming and installation?
A: No. A clear protective topcoat is applied over the printed layer, providing good scratch resistance and paint adhesion during profiling.
Q3: What substrate (GI or GL) is better for Printed Steel Coil?
A: Both work well. Galvanized (GI) is economical for standard applications, while Galvalume (GL) provides enhanced corrosion resistance for outdoor environments.
Q4: What are the main applications for printed PPGI/PPGL steel sheets?
A: They are widely used for corrugated roofing sheets, wall cladding, security doors, garage panels, indoor ceilings, furniture (tables, wardrobes), and home appliances.
